How a Breaker Panel Works: The 30-Second Version
Quick Answer: A breaker panel receives incoming power from the utility, then splits it into separate branch circuits, one for each group of outlets or appliances. Each circuit has its own breaker that shuts off automatically if too much current flows, stopping the wire from overheating before it can start a fire.

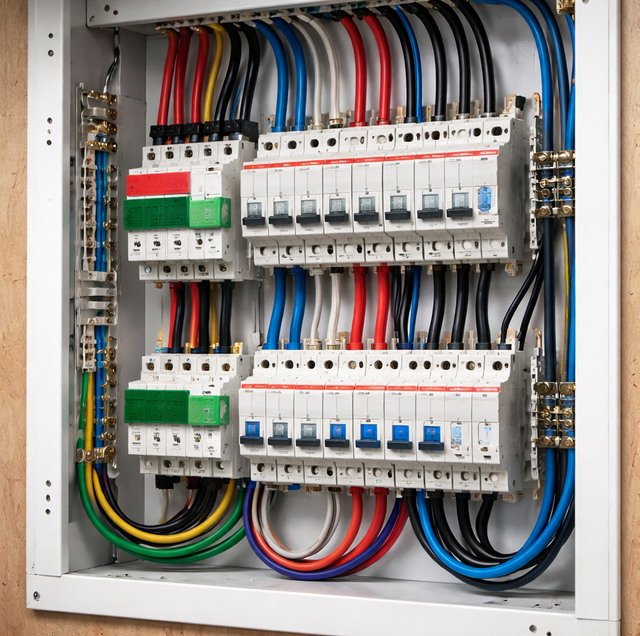

Every outlet, light, and appliance in your home is fed by one gray metal box, usually tucked into a garage, hallway, or utility closet. Open the outer door, and you see a column of switches with numbers beside them. That box is your breaker panel, also called a load center, and it does one job that everything else in the house depends on: it takes the single large supply of electricity coming from the utility and divides it into smaller, individually protected paths.
Understanding the flow first, before the parts, makes the whole box make sense.
How Power Moves Through the Panel
Electricity reaches your home through the utility's service lines, passes through the meter, and lands inside the panel. From there it splits. Instead of one giant wire trying to feed the whole house, the panel breaks that supply into dozens of smaller circuits, each running to a specific area: the kitchen counter outlets, the bedroom lights, the water heater, the air handler.
Think of the panel as a river reaching a delta, where one strong flow separates into many channels that each serve a different field. Every channel needs its own gate so that a problem in one field never floods the rest. In the panel, those gates are the breakers.
Each branch circuit carries only as much current as its wire is rated to handle safely. A breaker sits at the head of each circuit, watching the flow. As long as the current stays within the wire's limit, the breaker stays closed and power passes through. When the current climbs too high, the breaker opens and cuts the circuit off. The wire never gets the chance to overheat, because the switch gives out long before the copper does.
That is the entire purpose of the box. Distribution and protection, working together.
The Parts Inside a Breaker Panel
Now that the flow is clear, the components have obvious roles.
The Main Breaker: The largest switch, usually at the top, is the main breaker, sometimes called the service disconnect. It controls all the power feeding the panel. Flipping it off shuts down every circuit at once, which is what an electrician does before working on the box. Its number, often 100, 150, or 200, tells you the panel's total amperage rating.
The Hot Bus Bars: Behind the breakers run two vertical metal strips called bus bars. The utility feeds them at 120 and 240 volts. Standard outlets and lights pull 120 volts from one bar. Large appliances that need 240 volts, like an electric range or a central air unit, draw from both bars at once. When you snap a breaker onto the panel, it clamps onto one or both of these bars, which is how it receives power to pass along.
The Neutral and Ground Bars: Along the sides sit two more strips: the neutral bar and the ground bar. The neutral gives current a return path back to the source after it has done its work. The ground is a safety path, a route that carries stray current harmlessly away if something faults, instead of letting it travel through a person. In most main panels, these bars are bonded together; in a subpanel, they are kept separate.
Single-Pole and Double-Pole Breakers: Most breakers are single-pole. They take one slot, connect to one hot bar, and deliver 120 volts to a normal circuit. Double-pole breakers are twice as wide, span two slots, and bridge both hot bars to deliver 240 volts. You will find double-pole breakers feeding the dryer, the oven, the water heater, and the air conditioner. The width of the breaker is a quick tell for the voltage it carries.
How a Breaker Senses Trouble
A breaker is not a simple on-off switch. Inside is a mechanism that reacts to current in two different ways.
The first is thermal. A metal strip inside the breaker warms as current passes through it. A steady overload, a little more current than the wire should carry, for a sustained stretch, heats that strip until it bends and releases the switch. This is a slow, deliberate trip meant to catch a circuit that is being asked to do more than it should over time.
The second is magnetic. A sudden, massive surge of current, the kind a short circuit produces in a fraction of a second, generates a magnetic pull strong enough to snap the breaker open almost instantly. This fast trip catches dangerous faults before they can do damage.
Between the two, the breaker distinguishes an appliance that is quietly overloading a circuit from a wire that has just faulted hard.
Overload, Short Circuit, and Ground Fault: An overload happens when too many devices draw from one circuit at once, a space heater and a microwave and a toaster on the same kitchen line, pulling more current than the wire is rated for. A short circuit happens when a hot wire touches a neutral directly, letting current race through with almost nothing to slow it. A ground fault happens when current escapes its intended path and finds an unintended one, often through a person or damp surface. Each is a distinct problem, and a tripped breaker is the panel telling you one of them occurred.
GFCI and AFCI Breakers
Standard breakers protect the wire. Some circuits need protection for the people and the walls too, so two specialized breakers exist.
A GFCI breaker, ground-fault circuit interrupter, watches for current leaking off its intended path, the kind of leak that can shock someone near water. It reacts to imbalances far too small to trip an ordinary breaker, which is why kitchens, bathrooms, and outdoor circuits often use them. An AFCI breaker, arc-fault circuit interrupter, listens for the erratic electrical signature of arcing, the sputtering discharge a loose connection or a nicked wire behind a wall can produce, since that kind of arc is a common ignition source for house fires. Both do more than a plain breaker, and both belong on the circuits the wiring rules assign them to.
Reading the Panel Directory
Inside the door is a printed or handwritten directory, a list matching each breaker number to the area it controls: "12 - master bedroom," "20 - dishwasher."
A good panel directory turns a wall of identical switches into a map. If yours is blank, faded, or wrong, it is worth having corrected, because in an emergency you want to kill the right circuit on the first try, not test switches one at a time while water is spreading. Labeling is a task an electrician can complete quickly during any visit.
Why You Should Never Fit a Bigger Breaker
When a breaker trips again and again, swapping it for a higher-amperage one looks like a fix. It is the opposite. The breaker is sized to match the wire behind it. A 15-amp circuit uses wire that safely carries 15 amps. Put a 20-amp breaker on that same wire, and you have raised the trip point above what the wire can handle. Now the wire can overheat to the point of igniting insulation inside the wall, and the breaker, waiting for a higher number, never trips. The repeated tripping was the system working correctly, warning you the circuit is overloaded or faulted. The answer is to find out why, not to raise the ceiling on the danger.
Signs Your Panel Needs a Professional
The panel is built to run quietly for decades, so anything you can notice usually means something is off. Watch for:
- A warm or hot panel cover: The metal should stay at room temperature. Warmth points to a loose connection generating heat.
- Buzzing, humming, or crackling: A working panel is silent. Noise suggests a breaker or connection that is arcing or failing.
- Scorch marks, discoloration, or a burning smell: Any browning around a breaker or the smell of hot plastic means heat damage is already underway.
- Frequent trips: A breaker that resets and trips again within minutes is reporting a real fault, not misbehaving.
- A very old or recalled panel: Certain older panel brands have a known history of breakers that fail to trip when they should. An electrician can identify the make and advise whether it should be replaced.
Any one of these warrants a call, not a wait.
Resetting a tripped breaker is a homeowner task, but removing the inner cover is not. The panel carries lethal voltage even with the main breaker off, because the lugs feeding the main from the utility stay live no matter what you switch, and the bus bars behind that cover can kill. Opening the panel and any work beyond flipping a breaker is licensed-electrician work.
Frequently Asked Questions
Capacity is set by the number of slots, not the amperage rating. A 200-amp panel might have 40 slots, and half-height "tandem" breakers can fit two circuits into one slot where the panel is rated for them. Once every slot is filled, adding a circuit means a subpanel, a smaller satellite box fed from the main, rather than forcing more breakers into a full panel.
They do. A breaker is a mechanical device, and each trip stresses its internal spring and contacts. A breaker that has tripped hundreds of times, or one that has sat for decades in a humid or dusty spot, can weaken to where it trips at a lower current than its rating or, worse, fails to trip at all. Electricians sometimes replace an aging breaker that nuisance-trips even after the circuit checks out fine.
A motor, like the one in an air conditioner or a well pump, pulls a brief surge of current the instant it starts, several times its running draw. That momentary spike causes a small voltage dip across the panel, and sensitive lights flicker. An occasional flicker is normal. Lights that dim hard every time, or dim when small loads switch on, can signal a loose main connection or an undersized service and are worth having checked.
They do the same job but differently. A fuse box uses a metal filament that melts once to break an overloaded circuit, so a blown fuse must be thrown away and replaced. A breaker resets and is reused. Fuse boxes also make it easy to insert the wrong-size fuse, defeating the protection the way an oversized breaker does. Most fuse panels are old enough that an inspection is a reasonable step.
It caps the total current the whole house can draw at once, not any single circuit. A 100-amp service can supply 100 amps across everything running together. Add enough large loads, an EV charger, a hot tub, a second air handler, and the combined demand can approach that ceiling, which is why homeowners adding big equipment sometimes need a service upgrade even when individual circuits are fine.
Empty slots are normal and give room to add circuits later, but an open slot with no breaker leaves a hole into the live interior. Those holes should be filled with a snap-in blanking plate, never left open and never taped over. An open slot lets fingers, tools, or rodents reach energized parts, and it is a detail an electrician closes up during any panel visit.
